1. Industry Pain Points
1.1 Characteristics of Large-Flow, High-Drop Discharge Scenarios
1.1.1 High Vertical Drop
①Vertical drop between the material discharge point and stockpile surface typically exceeds 20 meters, requiring multi-stage velocity reduction to minimize particle breakage.
②In ports and mining environments, significant height differences during bulk material handling lead to material fragmentation (increasing losses) and heavy dust generation.
1.1.2 Large Flow Capacity

①Certain ship loaders handle capacities up to 3,000 m³/h, demanding uninterrupted operational stability and high efficiency.
②High-flow material transfer requires equipment with robust durability and continuous operation capabilities.
1.1.3 Wide Flow Rate Fluctuations
①Material flow rates vary significantly during operations (e.g., 500–1,000 t/h for a 1,000 t/h bulk grain ship loader).
②Equipment must adapt dynamically to flow variations to maintain stable material transfer.
1.2.1.1 Excessive Induced Airflow
Strong airflow between the conveyor belt discharge point and chute inlet causes severe dust dispersion.
1.2.1.2 Poor Inter-Section Sealing
Immature sealing technology at section joints results in dust leakage.
1.2.1.3 Mechanical Jamming
Non-smooth extension/retraction mechanisms lead to frequent operational jams.
1.2.1.4 Ineffective Breakage Reduction
Suboptimal deceleration and breakage reduction processes cause excessive particle fragmentation;Added deceleration devices increase fully retracted chute length while offering limited telescopic range.

1.2.2 Drawbacks of Traditional Conical Telescopic Chutes

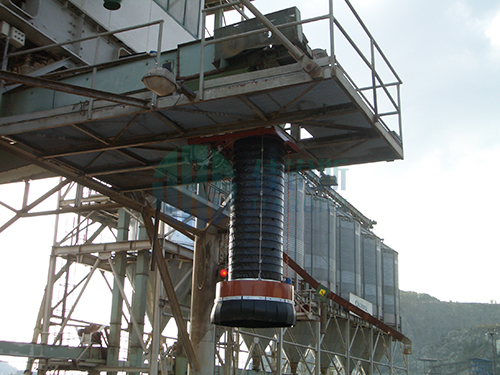

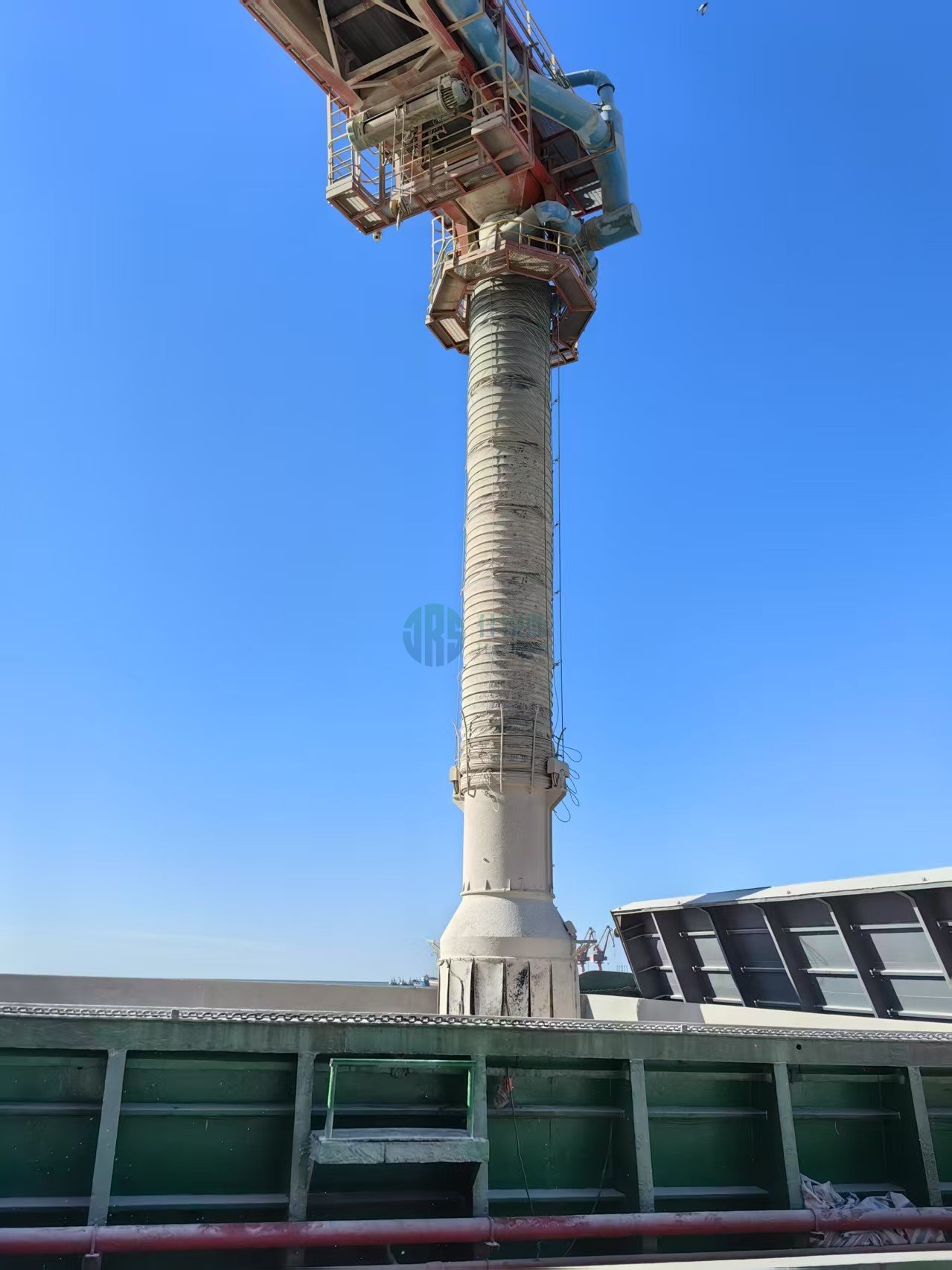

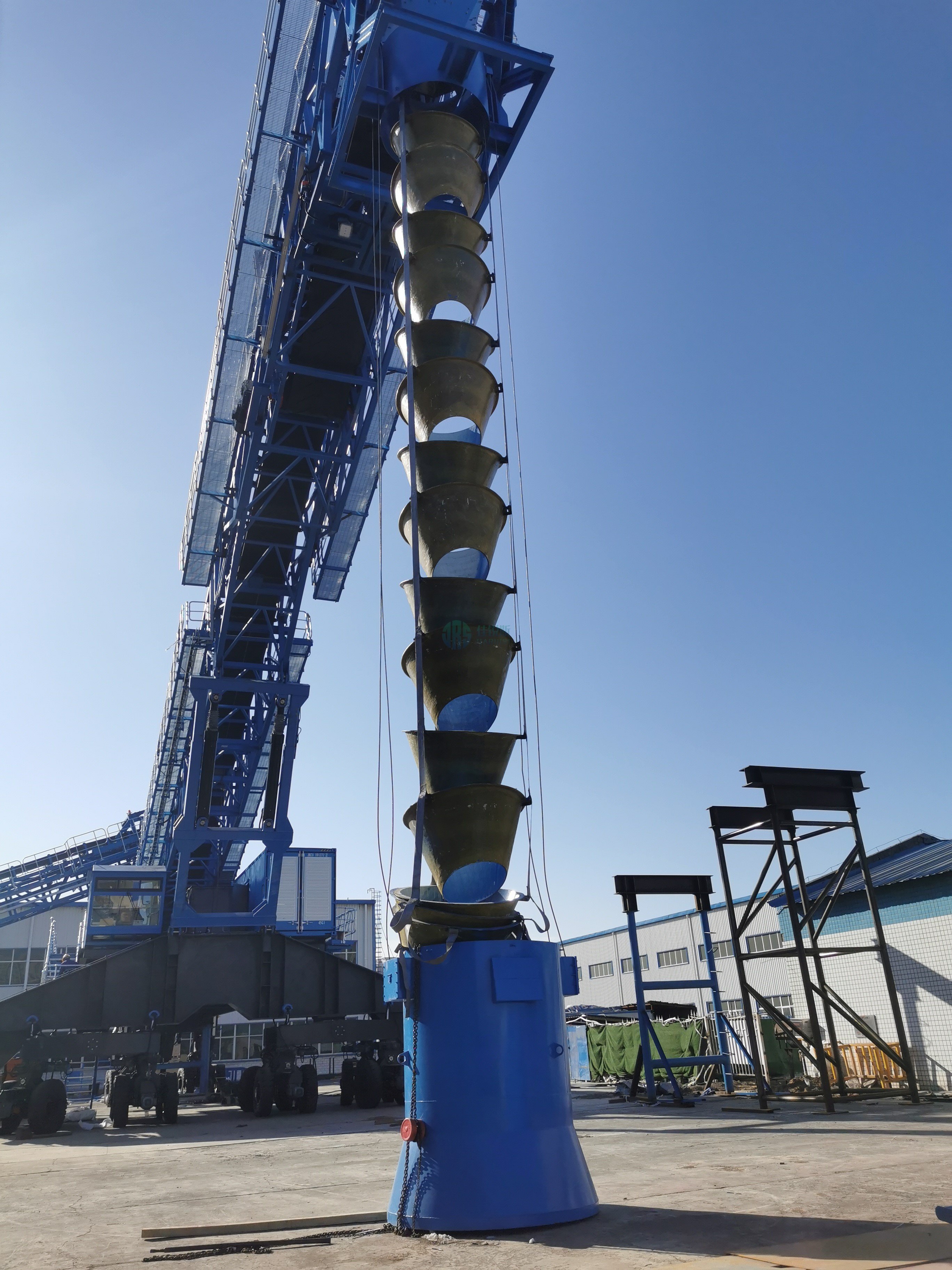

Conical Telescopic Chutes

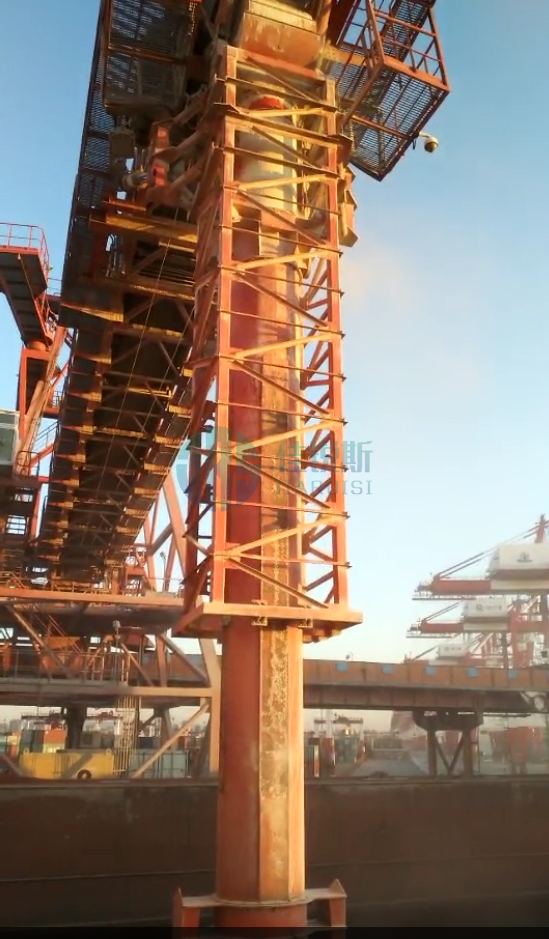

Eccentric Conical Telescopic Chutes

1.2.2.1 High Energy Consumption
Relies on high-power negative-pressure dust collectors, resulting in excessive energy costs (e.g., >50% higher than non-powered systems).
1.2.2.2 Frequent Component Failures
①Vulnerable parts (e.g., detached protective covers, fractured conical sections) necessitate high maintenance costs and frequent downtime.
1.2.2.3 Poor Operational Stability
②Prone to tilting, eccentric displacement, and mechanical jams, especially under high-flow conditions (>2,000 t/h).
1.2.2.4 Excessive Induced Airflow
Severe dust dispersion occurs at:Gap between conveyor belt discharge point and chute inlet;Sealing curtain gap at the chute outlet and stockpile surface.
1.2.2.5 Unreliable Material Level Monitoring
Mechanical level sensors often cause delayed alerts or false alarms, leading to:Complete material buildup inside dust covers;Hoist wire breakage and dust cover detachment.
1.2.2.6 Ineffective Breakage Reduction
Immature deceleration technology causes particle breakage rates exceeding standards (>5%).
1.2.2.7 Added non-powered dust suppression devices amplify dust dispersion and induce resonance vibrations with material flow fluctuations (e.g., >10 dB noise increase at 15–30 Hz).

1.2.2.1 High Energy Consumption
Relies on high-power negative-pressure dust collectors, resulting in excessive energy costs (e.g., >50% higher than non-powered systems).
1.2.2.2 Frequent Component Failures
①Vulnerable parts (e.g., detached protective covers, fractured conical sections) necessitate high maintenance costs and frequent downtime.
1.2.2.3 Poor Operational Stability
②Prone to tilting, eccentric displacement, and mechanical jams, especially under high-flow conditions (>2,000 t/h).
1.2.2.4 Excessive Induced Airflow
Severe dust dispersion occurs at:Gap between conveyor belt discharge point and chute inlet;Sealing curtain gap at the chute outlet and stockpile surface.
1.2.2.5 Unreliable Material Level Monitoring
Mechanical level sensors often cause delayed alerts or false alarms, leading to:Complete material buildup inside dust covers;Hoist wire breakage and dust cover detachment.
1.2.2.6 Ineffective Breakage Reduction
Immature deceleration technology causes particle breakage rates exceeding standards (>5%).
1.2.2.7 Added non-powered dust suppression devices amplify dust dispersion and induce resonance vibrations with material flow fluctuations (e.g., >10 dB noise increase at 15–30 Hz).

Large-Flow, High-Drop Discharge Solution – Case Study

2.1 Pain Points & Solutions
Case Example: A 1,000 t/h bulk grain ship loader (material: corn) at a port, with a vertical drop of 24 meters (maximum height from conveyor discharge point to ship hold bottom).
①Original System Issues

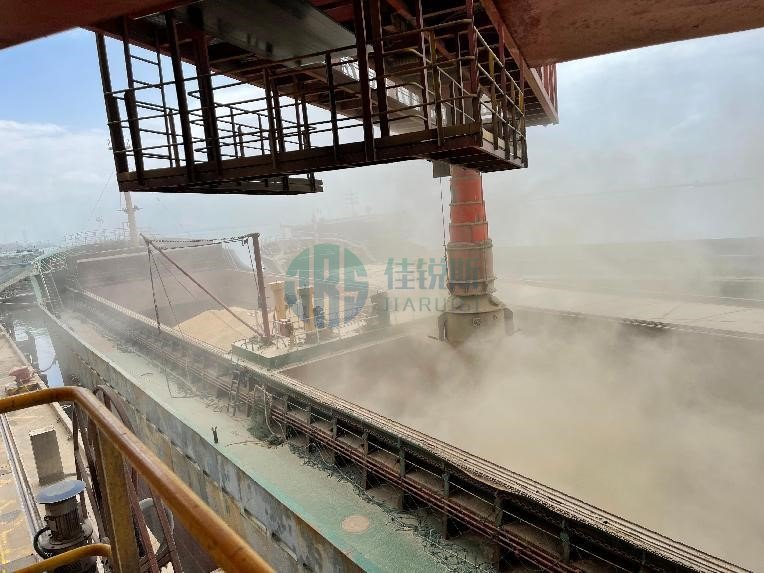

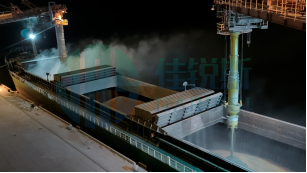

Eccentric conical telescopic chute exhibited:Severe dust dispersion during operation;High grain breakage rate (exceeding 5%);Frequent maintenance costs (e.g., monthly repairs due to jamming);Mechanical jams during extension/retraction cycles.
②Solution

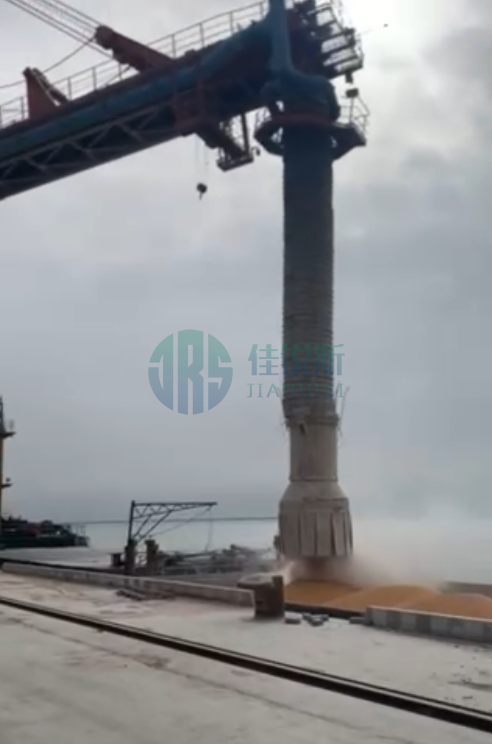

Replaced with a straight-tube multi-stage non-powered dust suppression telescopic chute assembly, featuring:Multi-stage deceleration zones to reduce corn velocity gradually, minimizing breakage;Sealed modular sections with labyrinth seals to suppress dust dispersion (<10 mg/m³ at outlet);
Low-friction guide rails and balanced weight distribution for smooth extension/retraction (zero jams in 6-month operation);Adaptive flow control to handle 500–1,000 t/h fluctuations without overflow.
